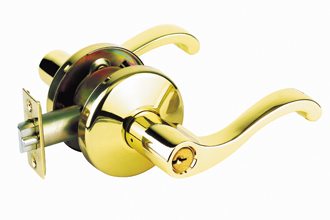

HL-4300L Series

      • - It is the ideal lever lockset for light commercial and residential applications

        - Heavy duty lever spring return rose assembly

        - Various Lever designs

    •
  • Overview
  • Functions
  • Trim
  • Finishes
  • Options
  • Options

Specifications

  • Applications
  • |    For interior offices, multi-family housing, restaurants, hotels, retail complexes
  • For Doors
  • |     1-3/8" to 1-3/4" (35mm to 45mm)
  • Backset
  • |    2-3/8"(60mm) or 2-3/4"(70mm) standard, 3-3/8"(85mm), 5"(127mm) optional
  • Hand
  • |    Right or Left hand must be specified for “Lido” and “Flair” designs
  • Latch
  • |    Zinc, 7/16” throw standard
  • Keys
  • |    Three, Brass standard (“L”, “R”, “E” levers) - Kwikset 5 pin
  • Cylinder
  • |    Zinc, Kwikset 5 pin standard (“L”, “R”, “E” levers)
  • Finishes (US Code)
  • |    3, 4, 5A, 10, 10B, 11, 15, 15A, 19, 26, 26D
  • Split Finishes
  • |    Outside finish specified first. Front & Strike finished to match inside trim unless otherwise specified
