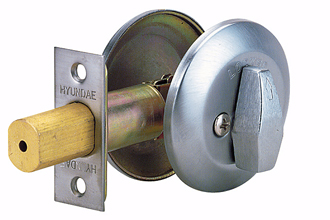

HL-740

      • - This series is ideally suited for residential buildings

        - Deadblot by thumb turn inside
          Blank plate outside and exposed screws inside
    •
  • Overview
  • Functions
  • Trim
  • Finishes
  • Options
  • Options

Specifications

  • Applications
  • |    For Auxiliary, primary and Twin communicating locking
  • Handing
  • |    Non-handed
  • For Doors
  • |    1-3/8” to 1-3/4”(35mm to 45mm) standard
  • Backset
  • |    2-3/8”(60mm), 2-3/4” (70mm) standard.
  • Strike
  • |    Brass, Bronze or Stainless steel ; D/B strike standard
  • Deadbolt
  • |    Solid brass with hardened steel pin, 1” throw
  • Finishes
  • |    3, 4, 5A, 10, 10B, 11, 15, 15A, 19, 26, 26D, 32 32D
