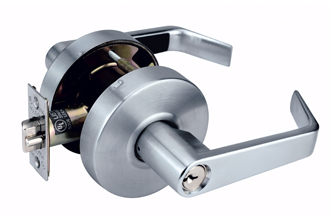

HL-4000L Series

Specifications

• Applications
• |    For commercial, industrial,institutional use such as schools, hospitals, factories, office and other public buildings

• For Doors
• |    1-3/8" to 1-3/4" (35mm to 45mm)

• Backset
• |    2-3/4"(70mm) standard or 2-3/8"(60mm), 3-3/4"(95mm), 5"(127mm) optional

• Hand
• |    Universal, not handed

• Latch
• |    Brass, 1/2" throw standard, Stainless steel, 1/2" throw optional

• Keys
• |    Two, Brass

• Cylinder
• |    Brass, 6 pin "Schlage C" keyway standard, Arrow, Weiser etc

• Free Wheeling
• |    Free Wheeling available on all keyed locks and Privacy function on request

• Interchangeable Core
• |    IC will accept compatible 6 or 7 pin cores with BEST(SFIC) on request

• Finishes (US Code)
• |    US3, US4, US10, US10B, US15, US26, US26D and etc

• Split Finishes
• |    Outside finish specified first. Front & Strike finished to match inside trim
